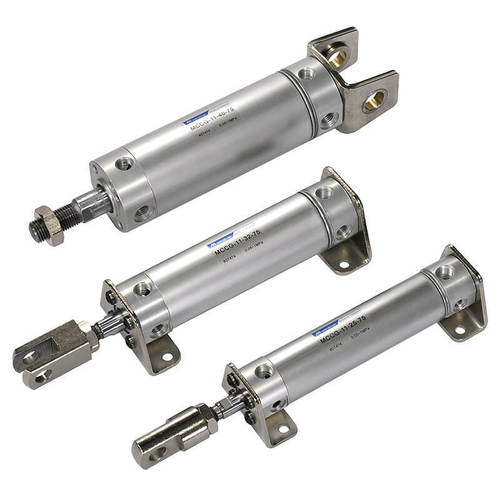

MINDMAN MCKA series

Get a Price/Quote

MOQ : 1 Piece

MINDMAN MCKA series Specification

Accuracy
Precise Positioning

Thread Type
Metric

Load Capacity
150400 kg

Shape
Rectangular

Hardness
High Strength

Size
Options: MCKA-12 / MCKA-16 / MCKA-20 / MCKA-25

Weight
0.18-0.51 kg (depending on model)

Coating
Clear Anodized

Machine Type
CNC Machining Centers, Automatic Assembly Lines

Method
Air-Powered/Pneumatic

Type
Pneumatic Swing Clamp Cylinder

Material
Aluminum Alloy

Tolerance
0.05 mm

Surface
Anodized

Use
Industrial Automation

Application
Fixture and Clamping Applications

Usage & Applications
Workholding, Positioning, Clamping

Stroke Length
12~24mm

Piston Diameter
20mm, 32mm, 40mm

Rotation Angle
90°

Switch Option
Reed or Solid State Switch

Action Type
Single Acting or Double Acting

Mounting Type
Flange Type

Cylinder Body Material
Hard Anodized Aluminum

Operating Pressure
0.2~0.7 MPa

Ambient Temperature
-5°C to 60°C

Seal Material
NBR

Port Size
M5, 1/8"

About MINDMAN MCKA series

Experience supreme strength combined with spectacular engineering in the MINDMAN MCKA series Pneumatic Swing Clamp Cylinder. Specially tailored for fixture, positioning, and clamping in CNC machining centers and automatic assembly lines, this unmatchable series ensures precise, reliable operation. With a hard anodized aluminum body, high-strength NBR seals, and clear anodized finish, durability is never an issue. Explore versatile single or double acting options, rotation angles of 90, and compatibility with reed or solid-state switches. Choose your piston diameter and size for outstanding performance. Add to Cart today for your industrial automation solutions!

MINDMAN MCKA Series: Advanced Workholding Excellence

Intended for industrial automation, the MINDMAN MCKA series delivers robust workholding, positioning, and clamping with supreme accuracy. Its exceptional features include a rectangular, high-strength aluminum alloy build, single or double acting action types, and a wide range of piston diameters. The hard anodized cylinder body, precise 0.05 mm tolerance, and compatibility with CNC machinery establish this series as an unmatchable choice for fixture applications in demanding environments.

Sample Policy, Payment Terms, and Certifications for MINDMAN MCKA Series

We provide a seamless proposal amount process for MINDMAN MCKA series samples, ensuring transparency and peace of mind. Goods transport options are arranged to guarantee safe, prompt shipment. Flexible payment terms cater to your business requirements, while our products comply with essential industry certifications. Each shipment is handled with care to protect the integrity of your order, reaffirming our commitment to reliability and customer satisfaction.

MCKA series

TUBE I.D.

STROKE

50 mm

75 mm

100 mm

125 mm

150 mm

MAGNET (+)

I CONNECTOR

Y CONNECTOR

Y / I PIN

MCKA-A series

TUBE I.D.

STROKE

50 mm

75 mm

100 mm

125 mm

150 mm

MAGNET (+)

I CONNECTOR

Y CONNECTOR

Y / I PIN

FAQs of MINDMAN MCKA series:

Q: How does the rotation angle benefit fixture and clamping applications?

A: The 90 rotation angle enables efficient swing clamping, providing quick engagement and disengagement of workpieces. This increases workflow speed and versatility in complex fixture setups.

Q: What features make the MCKA series suitable for CNC machining centers?

A: The MCKA series offers high accuracy (0.05 mm), robust hard anodized aluminum body, and compatibility with both reed and solid-state switches, making it ideal for precise, automated CNC operations.

Q: Where can the MCKA swing clamp cylinders be mounted?

A: The cylinders feature a flange type mounting, which supports secure installation in various fixtures and automated assembly line setups.

Q: What usage environments are recommended for MINDMAN MCKA series?

A: These cylinders are designed for ambient temperatures between -5C and 60C and are perfect for industrial automation, clamping, and workholding in demanding settings.

Q: How is shipment handled for the MCKA series once I place an order?

A: After your Add to Cart action, shipment is arranged using reliable goods transport options. Every order is carefully handled to ensure superior product condition upon arrival.

Q: What are the benefits of the different switch options available?

A: You can choose between a reed switch or a solid-state switch, both providing reliable position detection, allowing you to tailor the cylinders control system to your specific automation needs.
