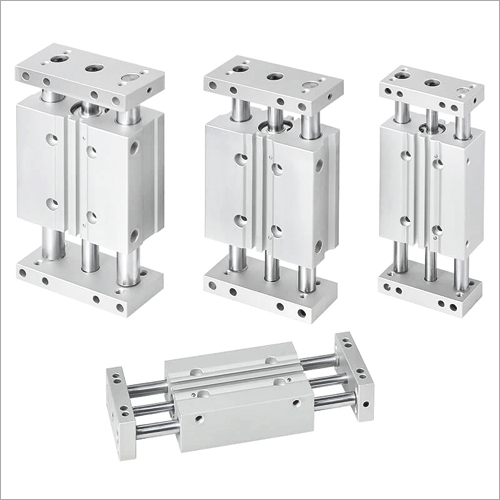

MINDMAN MCCG series

Get a Price/Quote

MOQ : 1 Piece

MINDMAN MCCG series Specification

Weight
Varies by model, approx. 0.15 kg to 2.8 kg

Method
Compressed air operation

Shape
Cylindrical

Size
Bore sizes: 16, 20, 25, 32, 40, 50, 63 mm

Machine Type
Pneumatic actuator

Hardness
Standard industrial grade

Load Capacity
As per bore size and air pressure (consult catalog)

Coating
Anodized

Accuracy
0.01 mm

Thread Type
Standard metric

Type
Double acting compact air cylinder

Material
Aluminum alloy

Tolerance
High precision, 0.01 mm

Surface
Clear anodized finish

Use
Air pressure and direction control

Application
Automation, Pneumatic systems, Industrial machinery

Usage & Applications
Automation equipment, Mechanical handling, Packaging machinery

Magnet Option
With/without magnet for sensor mounting

Maximum Pressure
13.5 kgf/cm² (1.35 MPa)

Cushion Type
Rubber bumper at both ends

Series
MCCG

Sensor Compatibility
Reed and solid state switches applicable

Operating Pressure Range
1.0 ~ 9.0 kgf/cm² (0.1~0.9 MPa)

Mounting Types
Variety: basic, flange, foot, clevis, trunnion

Port Size
M5x0.8, Rc1/8, Rc1/4 etc. depending on model

Stroke Length
Available in multiple standard strokes

Piston Rod Material
Stainless steel

Seal Material
NBR (Nitrile Rubber)

Manufacturing Standard
ISO 6431/VDMA24562 equivalent

Ambient Temperature
-5°C to +60°C

About MINDMAN MCCG series

MCCG series

TUBE I.D.20253240506380100

STROKE

25 mm

50 mm

75 mm

100 mm

125 mm

150 mm

200 mm

250 mm

300 mm

"OVER 300mm STROKE

EVERY 50mm PLUS"

MAGNET (+)

DUAL ROD1.51.51.41.41.41.41.41.4

Adjustable Cushion

Versatile Mounting Solutions

The MCCG Series features a variety of mounting types, including basic, flange, foot, clevis, and trunnion options. This flexibility allows for seamless integration into existing systems and different installation requirements across various industrial applications.

Reliable and Durable Construction

Manufactured with a clear anodized aluminum alloy body and stainless steel piston rod, the MCCG Series ensures robustness and resistance to corrosion. Its rubber bumpers and NBR seals further enhance durability and operational life, even under demanding industrial conditions.

Precision and Sensor Compatibility

With a precision tolerance of 0.01 mm and an option for magnetic piston rods, the MCCG Series supports high positional accuracy and the use of sensors, such as reed and solid-state switches. This makes it ideal for automated processes requiring exact movement and reliable feedback mechanisms.

FAQs of MINDMAN MCCG series:

Q: How can the MCCG Series air cylinders be installed in different automation setups?

A: The MCCG Series offers diverse mounting configurations including basic, flange, foot, clevis, and trunnion types. This enables easy adaptation to multiple machine layouts and provides flexibility for installation in various automation systems and industrial machinery.

Q: What is the recommended operating pressure range for the MINDMAN MCCG Series?

A: The MCCG Series operates efficiently within a pressure range of 1.0 to 9.0 kgf/cm (0.1 to 0.9 MPa). The cylinders are engineered to handle up to a maximum pressure of 13.5 kgf/cm (1.35 MPa) in short-term peak situations.

Q: When should the magnet option be selected for MCCG cylinders?

A: You should opt for the magnet-equipped MCCG cylinders when sensor mounting is required for position detection or automated control. These are compatible with both reed and solid-state switches to integrate feedback into your automation processes.

Q: Where is the MCCG Series commonly used in industrial applications?

A: The MCCG Series is widely employed in automation equipment, packaging machinery, mechanical handling setups, and general pneumatic systems due to its high precision, compact design, and robust construction.

Q: What process does the MCCG Series cylinder use to operate?

A: This series operates through compressed air, enabling precise control of movement and force. The double-acting design ensures efficient directional actuation during automation and industrial handling applications.

Q: What benefit does the MCCG Series provide regarding accuracy and repeatability?

A: With a high precision tolerance of 0.01 mm and robust build quality, the MCCG Series offers enhanced accuracy and repeatable performance, crucial for tasks demanding consistent operations in automated machinery.
