Twin-guide Cylinder Model: MCGJ

1000.00 - 10000.00 INR

Get a Price/Quote

Product Details:

Coating Anodized
Method Air-driven actuation
Thread Type Standard metric threads
Size Variable (as per model specification)
Shape Rectangular
Weight Lightweight
Load Capacity High load resistance
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Twin-guide Cylinder Model: MCGJ Price And Quantity

Minimum Order Quantity 1 Piece
Price Range 1000.00 - 10000.00 INR

Twin-guide Cylinder Model: MCGJ Product Specifications

Coating Anodized
Use Precise linear motion
Method Air-driven actuation
Application Automation equipment, packaging, assembly lines, electronic machinery
Size Variable (as per model specification)
Shape Rectangular
Thread Type Standard metric threads
Weight Lightweight
Material Aluminum alloy
Surface Anodized finish
Usage & Applications Guided pneumatic actuation in industrial automation
Tolerance Fine tolerance
Load Capacity High load resistance
Hardness Standard industrial
Type Twin-guide Cylinder
Accuracy High precision motion
Machine Type Pneumatic actuator

Product Description

Twin-guide Cylinder Model: MCGJ

Tube I.D.12,16,20,25,32,40,50,63,80,100mm are available for various needs.Make use of air to drive the push and pull of rod can achieve the effect of highly accurate operation.

Features

Higher loading capacity compared to unguided standard compact cylinders.
Wide range of bore sizes available 12mm ~ 100mm.
Up to 6 flush fitting reed switches can be mounted.
Piston rod available in high resistant carbon steel or stainless steel.
Magnetic as standard.

Specifications :

Acting type	Double acting
Tube I.D. (mm)	12,16,20,25,32,40,50,63,80,100
Port size	M5 0.8,PT1/8, PT1/4
Medium	Air
Operating pressure range	1~9.9 kgf/cm2
Proof pressure	15 kgf/cm2
Ambient temperature	5~ 60 (No freezing)
Lubrication	Not required
Cushion	without,With rubber cushion pad
Sensor switch	RCB, RCE, RCE1

Superior Guide Structure for Enhanced Stability

The twin rod guide design of the MCGJ Twin-guide Cylinder ensures enhanced stability and precise linear motion, making it well-suited for high-load applications. This structure reduces deflection and ensures accuracy, which is crucial in assembly lines and automation equipment requiring consistent performance.

Durable Construction for Demanding Environments

Manufactured using anodized aluminum, the cylinder body provides outstanding corrosion resistance and strength while remaining lightweight. High-quality NBR seals and rubber cushions at both ends further contribute to its long service life and low maintenance needs, even under continuous high-speed operation.

Flexible Customization and Easy Integration

Available in multiple bore sizes and offering a customizable stroke length, the MCGJ cylinder can be tailored to your specific application needs. With standardized port sizes and several mounting optionsincluding side, bottom, and body mountsinstallation is both flexible and straightforward across various machinery setups.

FAQs of Twin-guide Cylinder Model: MCGJ:

Q: How does the twin-guide structure benefit the MCGJ cylinders performance?

A: The twin-guide structure enhances lateral stability and minimizes rod deflection, resulting in precise and repeatable linear motion. This makes the MCGJ cylinder ideal for applications that require high accuracy and load resistance, such as automation and assembly systems.

Q: What applications are suitable for using the Twin-guide Cylinder Model: MCGJ?

A: This model is perfect for sectors like automation machinery, packaging lines, assembly stations, and electronic equipment where guided pneumatic actuation is essential. Its design and high reliability make it suitable for precision tasks and continuous industrial use.

Q: When should I choose a customizable stroke length for my cylinder?

A: Customizable stroke length allows you to match the cylinders travel to your applications specific requirements. This ensures optimal movement, prevents overtravel, and enhances equipment efficiency while reducing unnecessary wear on components.

Q: Where can the MCGJ Twin-guide Cylinder be installed within a system?

A: Thanks to its multiple mounting optionsside, bottom, or body mountthe cylinder can be integrated at various points within industrial machinery, providing flexibility during installation to suit different layouts and mechanical configurations.

Q: What is the typical process for maintaining this cylinder?

A: Routine maintenance involves periodically checking the NBR seals and ensuring that operating conditions stay within the specified range. The cylinders anodized finish and high-quality components keep maintenance minimal, making it cost-effective over its lifecycle.

Q: How does the cylinders anodized finish contribute to its longevity?

A: The anodized finish provides excellent corrosion resistance, protecting the aluminum body from environmental factors such as humidity or chemical exposure. This not only extends the components lifespan but also maintains smooth performance over time.

Q: What benefits does the MCGJ model offer over conventional pneumatic actuators?

A: The MCGJ offers high load capacity, precise repeatability (0.1 mm), and versatile customization options. Its twin-guide design provides enhanced stability and accuracy, while the lightweight, anodized aluminum body ensures durability, making it superior for precise automation tasks.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Mindman Guide Cylinders' category

Twin-guide Cylinder Model: MCGB Price Range : 1000.00 - 10000.00 INR Minimum Order Quantity : 1 Application : Automation, machinery Use : Linear motion applications Shape : Rectangular Usage & Applications : Precision positioning, automated movement Material : Aluminum alloy Machine Type : Pneumatic actuator Type : Other, Twinguide cylinder Method : Pneumatic Coating : Anodized finish Thread Type : Metric Size : Bore 16 mm, Stroke up to 100 mm Load Capacity : Up to 28 kgf Hardness : 6065 HRC (Guide rod) Tolerance : 0.01 mm Surface : Other , Anodized Weight : Approx. 850 g (varies by stroke) Accuracy : High repeatability, 0.03 mm CNC : Yes

Send Inquiry

Twin-guide Cylinder Model: MCGA Price Range : 1000.00 - 10000.00 INR Minimum Order Quantity : 1 Application : Packaging, Assembly lines, Automation Use : Linear Motion Applications Shape : Rectangular Usage & Applications : Guided Cylinder for Antirotative and Lifting Operations Material : Aluminum Alloy Machine Type : Pneumatic Cylinder/Actuator Type : Other, Twinguide Cylinder Method : Airdriven (Pneumatic) Coating : Hard Anodized Thread Type : Metric Size : Bore Size: 16mm, 20mm, 25mm (others on request) Load Capacity : Up to 20 kg (depending on model) Hardness : Approx. 80 HRA Tolerance : 0.01 mm Surface : Other , Anodized Finish Weight : Varies with stroke and bore size Accuracy : High Precision Guidance CNC : Yes

Send Inquiry

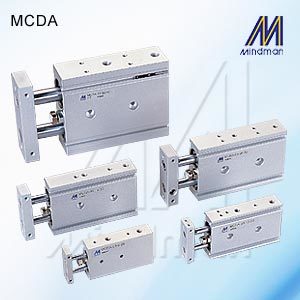

Dual-rod Cylinder Model: MCDA Price Range : 1000.00 - 10000.00 INR Minimum Order Quantity : 1 Application : Provides guided linear motion for operations requiring stability Use : Industrial automation Shape : Rectangular with dual cylindrical rods Usage & Applications : Used in packaging machines, conveyors, and assembly lines Material : Aluminum alloy (body), stainless steel (rods) Machine Type : Pneumatic actuator Type : Other, Double acting pneumatic cylinder Method : Pneumatic operation Coating : Corrosionresistant anodized coating Thread Type : Other, Metric thread for mounting ports Size : Standard bore sizes: 10, 16, 20, 25 mm Load Capacity : Up to 100 kg (varies with model) Hardness : Surface hardness up to 60 HRC (rods) Tolerance : High precision, 0.01 mm Surface : Other , Anodized finish Weight : Approx. 0.52.5 kg depending on bore and stroke Accuracy : Repeatability within 0.02 mm CNC : Yes
