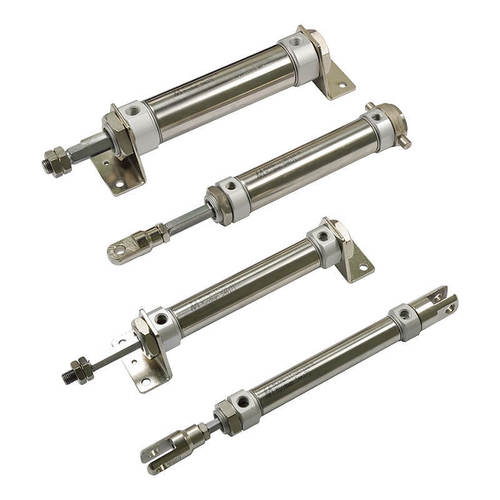

MINDMAN MCMA series (Standard with Magnet)

Get a Price/Quote

MOQ : 1 Piece

MINDMAN MCMA series (Standard with Magnet) Specification

Thread Type
Metric

Machine Type
Pneumatic actuator

Method
Air pressure driven

Hardness
Standard hardened cylinder body

Coating
Anodized aluminum

Shape
Round body

Weight
Varies by size (example: 0.23 kg for Ø32x50mm)

Load Capacity
Application dependent

Accuracy
High precision linear movement

Size
Bore sizes from Ø16 mm to Ø63 mm

Type
Double acting, with magnet

Material
Aluminum alloy

Tolerance
±0.01 mm

Surface
Anodized / Polished

Use
Pneumatic automation

Application
Industrial automation, assembly lines, material handling

Usage & Applications
Linear actuating in automated systems

End Cap Material
Aluminum alloy (anodized)

Sensor Switch Compatibility
Yes, for auto-switches (AML/AMS etc.)

Piston Speed
50~800 mm/sec

Stroke Length
Standard strokes up to 500 mm

Magnet
Standard with magnet for sensor mounting

Port Size
M5, 1/8" or 1/4" (varies by bore size)

Mounting Type
Basic, foot, flange, double clevis, trunnion

Cylinder Construction
Tie-rod type

Cushion Type
Rubber cushion at both ends

Operating Temperature
-5°C ~ +70°C

Operating Pressure Range
1.0~9.0 kgf/cm² (0.1~0.9 MPa)

Rod Material
Stainless steel

Seal Type
NBR

MINDMAN MCMA series (Standard with Magnet) About

MCMA series

TUBE I.D.1620253240

STROKE

25 mm

50 mm

75 mm

100 mm

150 mm

200 mm

250 mm

300 mm

350 mm

400 mm

450 mm

500 mm

"OVER 500 mm STROKE

EVERY 50 mm PLUS"

DUAL ROD1.51.41.41.41.4

SINGLE ACTING1.31.31.31.31.3

Versatile Actuation for Automation

Engineered to deliver reliable linear movement, the MCMA series adapts to multiple mounting styles including basic, foot, flange, double clevis, and trunnion. Its compatibility with sensor auto-switches (AML/AMS) supports precise, automated control in complex assembly and material handling systems. The round body and compact design make integration seamless in space-constrained settings.

Durable Construction and Materials

Featuring an anodized aluminum alloy end cap and a polished, hardened cylinder body, the MCMA pneumatic actuator offers longevity and resistance to corrosion. The stainless steel rod enhances durability while NBR seals guarantee effective air containment. Designed for rigorous industrial use, this cylinder maintains high accuracy and performance.

Magnetic Sensing for Automation

Standard magnets are incorporated for mounting sensor switches, simplifying installation and facilitating automated position detection. With high precision linear movement (0.01 mm tolerance), users benefit from enhanced monitoring capabilities, crucial for automation diagnostics and operational efficiency.

FAQs of MINDMAN MCMA series (Standard with Magnet):

Q: How do I mount the MINDMAN MCMA series cylinder in my automated system?

A: The MCMA series supports several mounting types such as basic, foot, flange, double clevis, and trunnion. Selection will depend on your applications spatial requirements and design constraints. Ensure secure installation by following the manufacturers guidelines and matching the correct port and bore sizes to your system.

Q: What operating conditions are suitable for the MCMA pneumatic cylinder?

A: This cylinder operates efficiently within a pressure range of 1.09.0 kgf/cm (0.10.9 MPa) and temperatures from -5C to +70C, making it suitable for most industrial environments including assembly lines and material handling areas. The robust materials and anodized surfaces offer durability in demanding conditions.

Q: When should I use sensor switches with the MCMA series?

A: Sensor switches, such as AML or AMS auto-switches, are recommended when precise feedback and automation are required. The integral magnet allows easy mounting and positioning of sensors, enabling real-time monitoring and control during operation, which improves safety and productivity.

Q: Where can I source different bore sizes for this cylinder?

A: Bore sizes for the MCMA series range from 16 mm to 63 mm and are available through authorized distributors, importers, or suppliers. Contact your local automation equipment supplier to match the optimal bore size for your load and stroke requirements.

Q: What benefits does the MCMA series offer for industrial automation applications?

A: The MCMA cylinder provides reliable, high-precision linear movement, robust construction, and easy integration with sensors for automated processes. Its variety of mounting options and application flexibility make it a preferred choice in material handling and assembly automation.

Q: How does the cylinders tie-rod construction enhance its performance?

A: Tie-rod construction adds strength and rigidity to the cylinder body, enabling it to withstand higher operating pressures and frequent cycles. This design also simplifies maintenance and increases overall product lifespan, particularly in high-use industrial settings.

Q: What process should I follow to select the correct stroke length and speed?

A: Stroke length for the MCMA series is available up to 500 mm, and piston speed ranges from 50 to 800 mm/sec. Choose stroke and speed based on your automation requirements, material movement distances, and cycle rates. Consulting the manufacturers data sheets ensures optimal match to your systems needs.
