INA Axial Angular Contact Ball Bearings

Get a Price/Quote

MOQ : 1 Piece

INA Axial Angular Contact Ball Bearings Specification

Weight
0.43 kg

Thickness
16 mm

Material
High-grade steel

Ball Bearing Type
Axial Angular Contact Ball Bearing

Structure
Angular contact, double direction

Seals Type
Open or sealed options available

Number Of Rows
Single Row

Bore Size
30 mm

Outside Diameter
62 mm

Limiting Speed
8000 rpm

Load Capacity
High axial and radial load capacity

Inner Diameter
30 mm

Static Load Rating (C0)
51 kN

Contact Angle
60 degrees

Cage Material
Polyamide/steel

Application
Machine tools, precision equipment, automotive

Temperature Range
-30°C to +120°C

Dynamic Load Rating (C)
24 kN

Lubrication
Grease or oil, depending on application

Mounting
Designed for mounting in axial configuration

INA Axial Angular Contact Ball Bearings Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
1000 Pieces Per Month

Delivery Time
1 Days

About INA Axial Angular Contact Ball Bearings

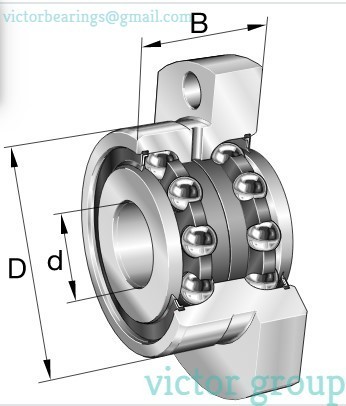

d D B

mm mm MM

ZKLN06192ZXL 6 19 12

ZKLN06242ZXL 6 24 15

ZKLN08322ZXL 8 32 20

ZKLN10342ZXL 10 34 20

ZKLN12422ZXL 12 42 25

ZKLN15452ZXL 15 45 25

ZKLN17472ZXL 17 47 25

ZKLN20522ZXL 20 52 28

ZKLN25572ZXL 25 57 28

ZKLN30622ZXL 30 62 28

ZKLN30722ZXL 30 72 38

ZKLN35722ZXL 35 72 34

ZKLN40752ZXL 40 75 34

ZKLN40902ZXL 40 90 46

ZKLN50902ZXL 50 90 34

ZKLN501102ZXL 50 110 54

ZKLN601102ZXL 60 110 45

ZKLN701202ZXL 70 120 45

ZKLN801302ZXL 80 130 45

ZKLN901502ZXL 90 150 55

ZKLN1001602ZXL 100 160 55

Precision for Demanding Applications

INA Axial Angular Contact Ball Bearings are purposebuilt to ensure high accuracy and stability in industries such as machine tools and automotive engineering Their deep angular contact construction combined with quality materials supports consistent performance even under significant loads and at high operational speeds Their 60degree contact angle delivers enhanced axial rigidity ideal for precision tasks

Flexible Mounting and Lubrication Options

Designed for axial mounting these bearings offer versatility thanks to options for both grease and oil lubrication Available with open or sealed configurations they adapt smoothly to various operational requirements With an impressive limiting speed of 8000 rpm and compatibility with diverse equipment maintenance and integration are convenient and efficient

FAQs of INA Axial Angular Contact Ball Bearings

Q How do I determine the correct lubrication type for INA Axial Angular Contact Ball Bearings

A The correct lubricationgrease or oildepends on your specific application rotational speed and load conditions For generalpurpose or enclosed environments grease is suitable For applications involving higher speeds or temperatures oil may provide better cooling and performance

Q What are the benefits of the 60degree contact angle in these bearings

A A 60degree contact angle significantly enhances the bearings capacity to support high axial loads from both directions improving stability and precision in machine tools and automotive applications where accurate axial positioning is critical

Q When should I choose polyamide versus steel cage material for my bearing

A Polyamide cages offer quieter operation and are lighter making them ideal for applications with moderate speeds and temperatures Steel cages are preferred for higher load or temperature scenarios providing increased strength and durability

Q Where can these bearings be mounted within an assembly

A INA Axial Angular Contact Ball Bearings are specifically designed for radial and axial loads in an axial thrust mounting configuration Their construction allows them to be used in pairs or independently based on the applications directional load requirements

Q What process is involved in installing these bearings

A Proper installation includes ensuring clean mounting surfaces pressing the bearing onto the shaft without applying force to the rolling elements selecting appropriate lubrication and optionally installing seals if the application requires sealed bearings

Q How does the double direction structure benefit precision equipment

A The double directional angular contact design allows the bearing to withstand axial loads from both directions which ensures sustained precision minimizes shaft displacement and enhances reliability in sensitive equipment and highspeed machinery
