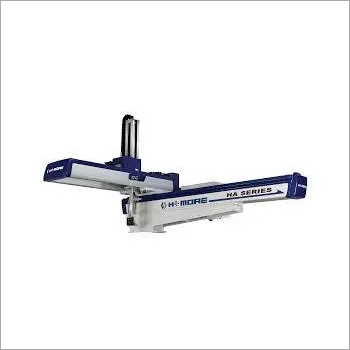

HI MORE INJECTION MOULDING ROBOT UXV 60 150 SERIES

Get a Price/Quote

MOQ : 1 Piece

HI MORE INJECTION MOULDING ROBOT UXV 60 150 SERIES Specification

Machine Type
Injection Moulding Robot

Shape
Robotic Arm with Telescopic Structure

Coating
Corrosion Resistant

Method
Servo & Pneumatic Driven

Hardness
Industrial Grade

Accuracy
High Precision (0.05 mm)

Weight
Approx. 55 kg

Size
Available for 60-150 tons moulding machines

Load Capacity
Up to 3 kg

Type
UXV 60 / UXV 80 / UXV 100 / UXV 120 / UXV 150

Material
Aluminium Alloy, Steel

Tolerance
0.05 mm

Surface
Powder Coated

Use
Automation of Injection Moulding

Application
Plastic Injection Moulding Machines

Usage & Applications
Automatic product pick-up and stacking, Runner separation, Product in-moulding

Power Supply
AC 220V / 50Hz / 1-Phase

Kick Stroke
150-250 mm (Model Dependent)

Control System
Microprocessor Based Controller

Vertical Stroke
500-900 mm (Model Dependent)

Operation Cycle Time
As low as 7 seconds

Mounting
Side or Top Mount

Drive Type
Servo Motor + Pneumatic

Series
UXV 60-150

Safety Features
Auto Alarm & Emergency Stop

Gripper Type
Adjustable Suction/Mechanical

Traverse Stroke
1100-2000 mm (Model Dependent)

Programmable Memory
Up to 80 Sets

Axis
3-axis (Traverse, Vertical, Kick)

About HI MORE INJECTION MOULDING ROBOT UXV 60 150 SERIES

MODEL	UXV-60		UXV-150
ITEM	UXV-60	UXVF-60	UXV-150
A. Full Length	1050	1115	1125
B. Full Width	284.5
C. Height of Main Arm	468.5
D. Height of Sub Arm	N / A
E. Max Radius of Product Handled	345	410	345
F. Min. Distance b/w the Arms min	N / A
G. Standby Position of Main Arm	170	235	170
H. Standby Position of Sub Arm	N / A
J. Min. Distance from Sub Arm to Base min	N / A
K. Max. Demolding Stroke max	450		550
L. Vertical Stroke of Sub Arm	N / A
M. Traverse Stroke of Sub Arm min	N / A
N. Min. Crosswise Stroke of Main Arm min	173
P. Max. Crosswise Stroke of Main Arm max	357
Q. Controller Width	680
R. Controller Height	N / A
S. X Axis Width	232
T. Y Axis Height	516.5
U. Z Axis Height	20
V. Width of Base	215

Efficient Automation for Injection Moulding

The UXV 60-150 Series delivers streamlined automation for plastic injection moulding processes. Its three-axis robotic arm enables swift product pick-up and stacking, runner separation, and product in-moulding, improving output quality and reducing manual labor. Flexible mounting and an intelligent control system ensure adaptation across a variety of machine types and production needs.

Advanced Control and Precision Performance

Equipped with a microprocessor-based controller and driven by both servo motors and pneumatic systems, this robot ensures high accuracy and responsive operation. Its programmable memory allows for up to 80 different tasks, accommodating complex production requirements seamlessly, all while maintaining cycle times as quick as 7 seconds.

Reliability, Safety, and Convenient Setup

Safety is prioritized with integrated auto alarms and emergency stop functions. The powder-coated, corrosion-resistant body guarantees longevity even in demanding environments. Lightweight yet robust, this robot is simple to mount either at the side or top of injection moulding machines, making integration and maintenance straightforward.

FAQs of HI MORE INJECTION MOULDING ROBOT UXV 60 150 SERIES:

Q: How does the UXV 60-150 robotic arm automate injection moulding operations?

A: The UXV 60-150 automates key tasks such as product pick-up, stacking, runner separation, and in-moulding by utilizing its three-axis movement (traverse, vertical, kick). This automation enables consistent, efficient handling of moulded products, reducing manual intervention and enhancing production throughput.

Q: What type of control system is used in the UXV 60-150 series, and how does it benefit production?

A: This series features a microprocessor-based controller that provides precise, customizable operation. With programmable memory for up to 80 sets of instructions, it allows users to manage complex workflows and repeatable processes, boosting overall efficiency and reducing setup time between jobs.

Q: When is it recommended to use the UXV 60-150 robot in a manufacturing setup?

A: The robot is ideal when high-speed, precise automation is required for injection moulding machines within the 60150 ton range. It is particularly valuable in high-volume production environments needing rapid cycle times and reduced product handling errors.

Q: Where can the UXV 60-150 robot be mounted, and how does this affect installation?

A: The UXV 60-150 can be mounted either on the side or on top of the injection moulding machine, offering flexibility based on workshop layout and space constraints. This versatility simplifies integration into existing production lines without significant modifications.

Q: What is the process for setting up programmable routines on this robot?

A: Operators use the microprocessor-based controller to program routines. Up to 80 sets of tasks can be entered, adjusted, and stored, allowing the robot to switch efficiently between different product handling requirements. User-friendly interfaces streamline setup without needing extensive technical skills.

Q: What are the main usage and application scenarios for this series?

A: The UXV 60-150 series excels in automatic product pick-up, stacking, runner separation, and in-moulding in plastic injection moulding machines. Its designed for use by manufacturers seeking to increase productivity, quality, and operational safety through automation.

Q: What are the primary benefits of using the UXV 60-150 injection moulding robot?

A: Key benefits include improved cycle time (as low as 7 seconds), high accuracy (0.05 mm), reduced manual labor, greater repeatability, flexible mounting, reliable corrosion resistance, and enhanced safety due to built-in alarms and emergency stop features.
