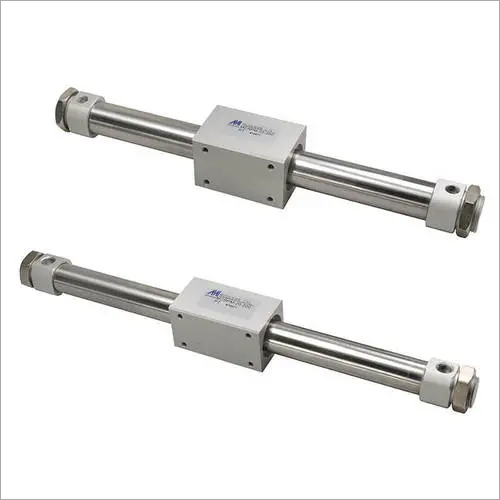

MINDMAN MCRPMS series

1000.00 - 10000.00 INR

Get a Price/Quote

Product Details:

Size Standard size for MCRPMS Series
Hardness High Strength Aluminium
Shape Round
Load Capacity Suitable for standard pneumatic cylinder loads
Method Bolt-on or Pin-mounted
Thread Type Metric
Machine Type For Pneumatic Actuators
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

MINDMAN MCRPMS series Price And Quantity

Price Range 1000.00 - 10000.00 INR
Minimum Order Quantity 1 Piece

MINDMAN MCRPMS series Product Specifications

Usage & Applications Cylinder Rear Pivot Mounting
Coating Anodized
Accuracy High Precision Mounting
Weight Approx. 185g
Machine Type For Pneumatic Actuators
Application Industrial Automation, Pneumatic Systems
Method Bolt-on or Pin-mounted
Load Capacity Suitable for standard pneumatic cylinder loads
Shape Round
Thread Type Metric
Hardness High Strength Aluminium
Type MCRPMS Series Pneumatic Cylinder Accessories
Surface Anodized, Polished
CNC Yes
Tolerance 0.01 mm
Material Aluminium Alloy
Use Pneumatic Cylinder End Caps
Size Standard size for MCRPMS Series

Product Description

MCRPMS series


*TUBE I.D.*
*STROKE*
*100 mm*	*Bilateral piping*
	*Centralized piping*
*150 mm*	*Bilateral piping*
	*Centralized piping*
*200 mm*	*Bilateral piping*
	*Centralized piping*
*250 mm*	*Bilateral piping*
	*Centralized piping*
*300 mm*	*Bilateral piping*
	*Centralized piping*
*350 mm*	*Bilateral piping*
	*Centralized piping*
*400 mm*	*Bilateral piping*
	*Centralized piping*
*450 mm*	*Bilateral piping*
	*Centralized piping*
*500 mm*	*Bilateral piping*
	*Centralized piping*
*600 mm*	*Bilateral piping*
	*Centralized piping*
*700 mm*	*Bilateral piping*
	*Centralized piping*
*750 mm*	*Bilateral piping*
	*Centralized piping*
*800 mm*	*Bilateral piping*
	*Centralized piping*
*900 mm*	*Bilateral piping*
	*Centralized piping*
*1000 mm*	*Bilateral piping*
	*Centralized piping*
*Shock Absorber (+)*
*MAGNET (+)*

Precision and Durability

Engineered to deliver precise mounting with a tolerance of 0.01 mm, the MINDMAN MCRPMS Rear Pivot Mount ensures secure attachment and sustained operational stability. The high-strength aluminium alloy construction, combined with an anodized and polished surface, offers both longevity and a sleek finish, making it suitable for continuous industrial use.

ISO-Compliant, Corrosion-Resistant Mounting Solution

This bracket conforms to international ISO 6431/15552 standards, guaranteeing compatibility and safety for pneumatic actuators. The corrosion-resistant anodized coating and smooth finish provide reliable protection against harsh environmental conditions, minimizing wear, and extending service life.

FAQs of MINDMAN MCRPMS series:

Q: How is the MINDMAN MCRPMS Rear Pivot Mount installed on pneumatic cylinders?

A: The bracket can be mounted using either bolt-on or pin-mounted methods, ensuring flexibility and secure attachment to MINDMAN MCRPMS Series pneumatic cylinders as specified by your installation requirements.

Q: What benefit does the anodized aluminium alloy provide in industrial automation applications?

A: The anodized coating enhances corrosion resistance and surface durability, while the aluminium alloy delivers high strength with low maintenance, making the bracket ideal for challenging automation environments.

Q: Where can this cylinder mounting bracket be used?

A: It is primarily designed for use as a rear pivot mount in industrial automation, pneumatic systems, and applications requiring robust, dust-resistant mounting brackets for MINDMAN MCRPMS Series cylinders.

Q: When should I choose this rear pivot mount over other mounting types?

A: This rear pivot mount is recommended when precise alignment, high load capacity, and flexible mounting methods are required, especially in automated or CNC-compatible pneumatic systems.

Q: What standard sizes and tolerances are available for this accessory?

A: The MCRPMS mounting bracket is made to standard sizes compatible with MINDMAN MCRPMS Series cylinders and features a high precision tolerance of 0.01 mm for secure, optimal fit.

Q: How does the bracket contribute to maintenance and operational efficiency?

A: Its corrosion-resistant and dust-proof construction reduces maintenance needs by resisting environmental damage, thereby enhancing operational efficiency and lowering long-term costs.

Q: Is this product available through distributors, importers, and suppliers in India?

A: Yes, the MINDMAN MCRPMS Series mounting bracket is distributed, imported, and supplied by authorized dealers throughout India for convenient procurement and support.
