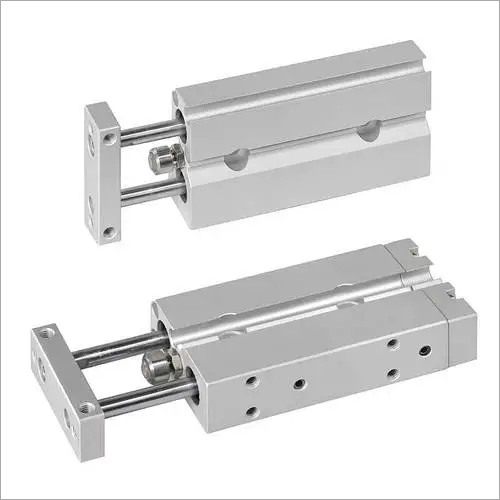

Mindman MCCG series

Get a Price/Quote

MOQ : 5 Pieces

Mindman MCCG series Specification

Method
Double acting, air operated

Size
12, 16, 20, 25 mm (bore sizes)

Load Capacity
Suitable for medium load

Shape
Round/Compact

Thread Type
Standard metric

Hardness
Standard industrial hardness

Coating
Corrosion-resistant surface treatment

Machine Type
Pneumatic automation

Accuracy
High positional accuracy

Weight
Varies by bore size, Light weight

Type
Compact guide cylinder

Material
Aluminum alloy

Tolerance
High precision

Surface
Anodized / Polished

Use
Automation machinery

Application
General pneumatic, manufacturing automation

Usage & Applications
Cylinder actuation, guide applications

Mounting
Multiple mounting options (through hole, foot, flange, clevis etc.)

Cushion Type
Rubber bumper

Model
MCCG series

Max Operating Pressure
1.0 MPa

Port Size
M5, 1/8" (depends on bore size)

Lubrication
Not required (pre-lubricated)

Min Operating Pressure
0.1 MPa

Stroke Length
10 mm - 100 mm (customizable)

Operating Temperature Range
-10°C to +70°C

Repeatability
±0.03 mm

Seal Material
NBR/Viton (option)

Magnet
With or without magnet for position sensing

Rod Material
Stainless steel

About Mindman MCCG series

MCCG series

TUBE I.D.

STROKE

25 mm

50 mm

75 mm

100 mm

125 mm

150 mm

200 mm

250 mm

300 mm

OVER 300mm STROKE
EVERY 50mm PLUS

MAGNET (+)

DUAL ROD

Adjustable Cushion

TUBE I.D.

STROKE

25 mm

50 mm

75 mm

100 mm

125 mm

150 mm

200 mm

250 mm

300 mm

350 mm

400 mm

450 mm

500 mm

600 mm

700 mm

MAGNET (+)

DUAL ROD

Adjustable Cushion

Precision Meets Versatility

The MCCG Series compact guide cylinder is engineered for environments demanding accuracy and adaptability. Its round, lightweight design fits seamlessly into automation machinery, while multiple mounting options simplify installation. Robust construction and advanced surface treatments ensure longevity, maintaining consistent performance even in demanding conditions.

Engineered for Automation

Integrating the MCCG Series into your automation setup is straightforward, thanks to its CNC compatibility and flexible stroke length options. The inclusion of a position sensing magnet, optional seal materials, and high repeatability address diverse manufacturing needs. Its stainless-steel rod and quality coatings further reinforce reliability for continuous industrial use.

FAQs of Mindman MCCG series:

Q: How does the MCCG Series ensure precise positioning in automation applications?

A: The MCCG Series offers high positional repeatability of 0.03 mm, aided by guided cylinder design and optional magnetic position sensing, making it suitable for tasks that require accurate motion such as pick-and-place or assembly operations.

Q: What mounting options are available for installing the MCCG Series cylinder?

A: This series provides versatile mounting options including through hole, foot, flange, and clevis types. This flexibility enables easy integration into various machinery layouts in manufacturing settings.

Q: When should I choose NBR versus Viton seals for the MCCG cylinder?

A: Choose NBR seals for standard pneumatic applications within typical operating temperatures. Opt for Viton seals when higher chemical resistance or operation at elevated temperatures is required, ensuring compatibility with demanding environments.

Q: Where can the MCCG Series be used within automation machinery?

A: The MCCG Series is designed for application in general pneumatic automation, manufacturing lines, and CNC equipment that require compact, reliable actuation with precise guiding.

Q: What is the process for customizing stroke length within the MCCG Series?

A: Stroke lengths between 10 mm and 100 mm can be customized at the time of order. Specify your desired length based on the needs of your machine or automation process, ensuring tailored fit and performance.

Q: How does the pre-lubrication benefit the maintenance of the MCCG Series?

A: The MCCG Series cylinders are pre-lubricated and do not require additional routine lubrication, minimizing maintenance demands and reducing long-term operational costs.

Q: What are the key benefits of using a compact guide cylinder like the MCCG Series?

A: Key benefits include space-saving installation, efficient load handling, high repeatability, corrosion-resistant construction, and compatibility with automation and CNC machinery, making it ideal for various industrial automation tasks.
