MCCG Round Cylinders Model: MCCG

1000.00 - 10000.00 INR

Get a Price/Quote

Product Details:

Load Capacity Upto 5000N
Accuracy High Precision
Shape Round
Weight 0.8 - 2.5 kg
Method Extruded Aluminum
Size Bore Diameter: 32-100 mm
Machine Type Pneumatic Cylinder
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

MCCG Round Cylinders Model: MCCG Price And Quantity

Minimum Order Quantity 1 Piece
Price Range 1000.00 - 10000.00 INR

MCCG Round Cylinders Model: MCCG Product Specifications

Machine Type Pneumatic Cylinder
CNC Yes
Type Double Acting Cylinder
Coating Anodized
Application Pneumatic Systems
Hardness 60 HRC
Thread Type Metric
Load Capacity Upto 5000N
Accuracy High Precision
Tolerance 0.01 mm
Surface Polished
Shape Round
Weight 0.8 - 2.5 kg
Use Industrial Automation
Material Aluminum Alloy
Usage & Applications Linear Motion, Clamping, Lifting
Method Extruded Aluminum
Size Bore Diameter: 32-100 mm

Product Description

MCCG Round Cylinders Model: MCCG

Tube I.D.:20,25,32,40,50,63 (mm).Port size PT 1/8, PT1/4,Operating pressure:0.5~9.9 kgf/cm2Proof pressure:15k gf/cm2

Features

Many mounting options available.

Interchangeable with other manufacturers.

Specifications :

Acting type	Double acting
Tube I.D. (mm)	20,25,32,40,50,63
Port size Rc(PT)	PT1/8,PT1/4
Medium	Air
Max operating pressure	9.9 kgf/cm2
Min operating pressure	0.5 kgf/cm2
Proof pressure	15 kgf/cm2
Stroke length tolerance	1~1000 ST:( 1.4 -0mm)
Ambient temperature	5~ 60 (No freezing)
Lubrication	Not required
Available speed range	50~500 mm/sec
Cushion	With rubber cushion pad
Sensor switch	RCA
Sensor switch holder	BGA20~BGA63

Engineered for Performance

MCCG Round Cylinders are optimized for high precision and robust performance in industrial automation. Built with extruded aluminum and chrome-plated steel piston rods, their polished surface is coated with hard anodization for enhanced hardness (60 HRC) and corrosion resistance. Adjustable air cushioning ensures smooth operation across a variety of pneumatic systems.

Versatile Mounting and Application

Offering mounting flexibility with basic, foot, flange, and clevis options, these pneumatic cylinders adapt to diverse machinery layouts. Their double acting design is ideal for tasks demanding reliable linear motion, accurate clamping, or effective lifting, while supporting bore sizes from 32 mm to 100 mm for varying force and stroke requirements.

Reliability and Ease of Maintenance

Manufactured with nitrile rubber seals and an IP65-rated enclosure, MCCG cylinders resist dust and water intrusion, resulting in lower maintenance needs. The cylinders are suitable for demanding environments in industrial settings, and distributors, importers, and suppliers across India ensure widespread availability for fast replacement or scaling up.

FAQs of MCCG Round Cylinders Model: MCCG:

Q: How do I select the correct mounting type for MCCG Round Cylinders?

A: Consider your machines layout and operational requirements: choose basic mounting for standard applications, foot and flange for stable fixed installation, or clevis mounting for pivoting movements. These options provide flexibility to adapt the cylinder to your specific pneumatic system setup.

Q: What is the process for installing MCCG Round Cylinders in pneumatic systems?

A: Begin by selecting the appropriate mounting type and ensuring stroke length and bore diameter match your application. Secure the cylinder using compatible hardware, connect the air supply to the PT ports, and adjust the air cushioning for desired motion. Double-check seals and connections before operation.

Q: When should I consider maintenance or replacement of cylinder seals?

A: Inspect the nitrile rubber seals periodically, especially if you notice decreased performance or air leakage. Due to their robust construction and low maintenance design, seals may last longer, but in harsh conditions, checking after every 612 months of use is advisable.

Q: Where can MCCG cylinders be used for optimal benefit?

A: MCCG cylinders are ideal for industrial automation applications such as clamping, lifting, and precise linear motion in assembly lines, material handling equipment, and automated machines, especially where reliability and high accuracy matter.

Q: What benefits do adjustable air cushions provide in these cylinders?

A: Adjustable air cushions allow you to control the cylinders end-of-stroke speed and reduce impact, minimizing wear and ensuring smoother operation. This extends product life and enhances the precision of automated movements.

Q: How does the IP65 protection class benefit cylinder usage?

A: IP65 rating means the MCCG cylinder is protected against dust and water jets, enabling usage in environments where debris and moisture are present, and reducing maintenance needs by safeguarding internal components.

Q: What advantages does the ISO 6432 compliance offer to users?

A: Conformance to ISO 6432 guarantees dimensional interchangeability and standardized performance, ensuring ease of integration, compatibility with other components, and confidence in global quality benchmarks.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Mindman Round Cylinders' category

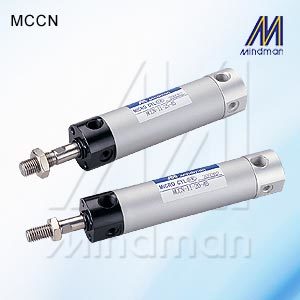

MCCN Round Cylinders Model: MCCN Price Range : 1000.00 - 10000.00 INR Minimum Order Quantity : 1 Hardness : HRC 622 Thread Type : Other, Metric fine threads Application : Industrial automation, machinery Type : Other, Pneumatic cylinder Coating : Corrosionresistant chrome plating CNC : Yes Machine Type : Compatible with automatic and semiautomatic machines Size : Bore diameter options: 16 mm, 20 mm, 25 mm, 32 mm, 40 mm; Stroke: up to 300 mm Method : Single or double acting available Usage & Applications : Used in precision movement, robotics, conveying systems Material : Highgrade alloy steel Shape : Round Tolerance : 0.01 mm Surface : Other , Smooth polished finish Use : Linear motion applications Weight : Varies by bore and stroke (e.g., 0.61.8 kg) Accuracy : 0.01 mm Load Capacity : Up to 1200 N depending on model
