Linear Guideways

Get a Price/Quote

MOQ : 1 Piece

Linear Guideways Specification

Tensile Strength
800 MPa

Type
Linear Guideways

Material
Alloy Steel

Weight
1.5 to 2.5 Kilograms

Surface
Smooth Coated

Application
CNC Machines, Automation Equipment, Robotics

Feature
Corrosion Resistant, High Precision, Durable

Load Capacity
Up to 5000 kg

Rail Type
Square and Rectangular

Hardness
HRC 58-62

Operational Temperature
-20°C to +80°C

Width
15 mm to 65 mm

Lubrication
Oil or Grease

Length
200 mm to 4000 mm

Precision Grade
P5, P6

Linear Guideways Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
1000 Pieces Per Month

Delivery Time
1 Days

About Linear Guideways

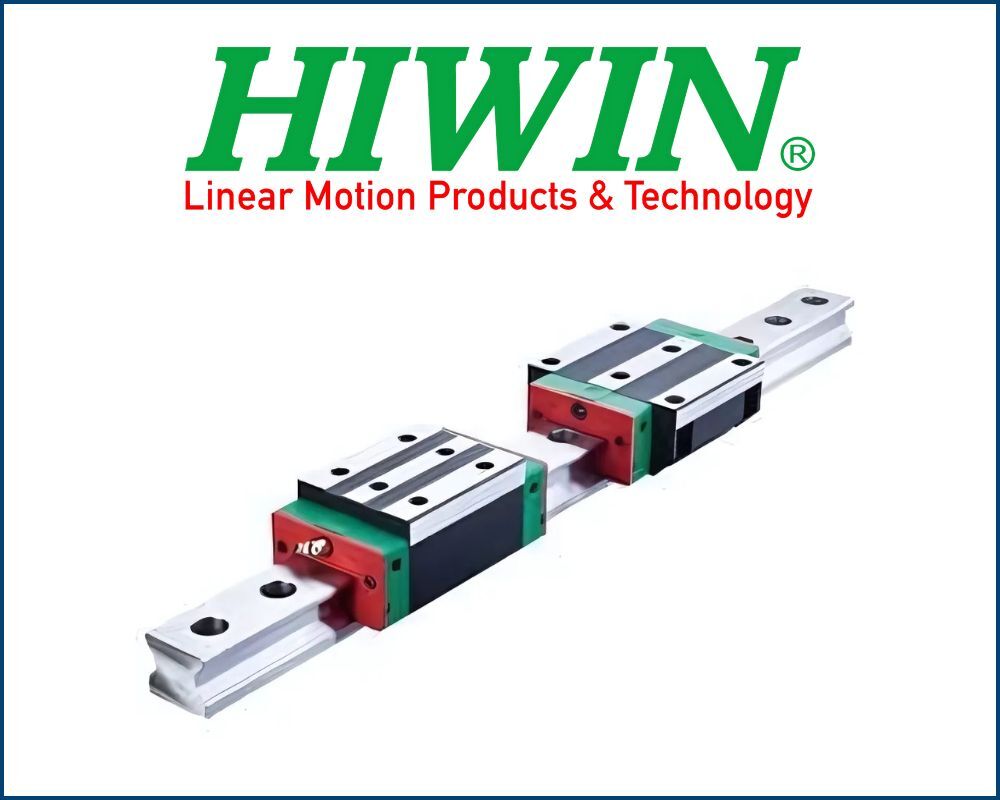

Linear Guideways

Our company is one of the chief supplier and traders of Linear Guideways. These screws are highly praised for its characteristics in Indian Subcontinents and East Asia. Our Linear Guide Way Ball is widely used in automobile and other industries.

Our esteemed clients can avail from us a wide array of Linear Guide ways. These products are widely demanded all across the country for their precision and durability. Highly resistant to corrosion these products are available in the market at reasonable rates. Moreover, we test the quality of these products before final dispatch, thus assure to deliver a quality approved array.

Features:

Robust construction
Easy installation

Precision Engineering for Demanding Applications

Crafted from premium alloy steel, our linear guideways guarantee smooth motion and high accuracy. The P5 and P6 precision grades, along with the robust hardness rating, make them ideal for industries requiring seamless, reliable positioning such as CNC machining, robotics, and automation.

Optimized for Longevity and Performance

A smooth coated surface provides corrosion resistance, while high tensile strength ensures safe and efficient heavy-load operation. These guideways are engineered to operate efficiently across a range of temperatures and in challenging conditions, making them dependable for continuous use.

FAQs of Linear Guideways:

Q: How do I select the appropriate linear guideway size for my application?

A: To choose the right size, consider the maximum load your system must carry, the available installation space, and the required precision. Our guideways are available in various lengths (200 mm to 4000 mm) and widths (15 mm to 65 mm), and can handle loads up to 5000 kg, making them suitable for applications of varying scale.

Q: What is the recommended process for lubrication and maintenance of these linear guideways?

A: Lubricate the guideways regularly with oil or grease as specified in your equipment manual. Proper lubrication minimizes friction, reduces wear, and enhances operational lifetime. Periodic cleaning ensures the smooth coated surface remains effective against corrosion.

Q: When should I opt for P5 precision grade over P6?

A: Choose P5 precision grade when your application requires higher accuracy and tighter tolerances, such as in advanced CNC machining or robotics. For general automation equipment where ultra-high precision is not as critical, P6 provides a reliable and cost-effective solution.

Q: Where can these linear guideways be used effectively?

A: These guideways are ideal for use in CNC machines, automation equipment, and robotics due to their durability and precision. They provide consistent linear motion and load support, ensuring smooth operation in high-performance industrial settings.

Q: What benefits do corrosion-resistant and high-hardness features provide?

A: Corrosion resistance ensures lasting performance even in humid or harsh environments, while the high hardness (HRC 58-62) and tensile strength (800 MPa) result in improved wear resistance and load capacity. These features contribute to the guideways long operational life.

Q: How durable are these guideways under varying operational temperatures?

A: Engineered to operate reliably from -20C to +80C, these guideways maintain their structural integrity and precision, making them suitable for a wide spectrum of industrial and environmental conditions.
