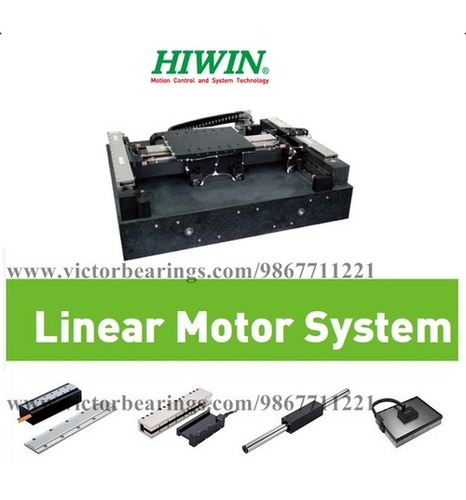

HIWIN Linear Motors

Get a Price/Quote

MOQ : 1 Piece

HIWIN Linear Motors Specification

Weight
4 kg - 15 kg (based on model and size)

Thickness
10 mm - 25 mm

Material
High-grade Steel

Ball Bearing Type
Deep Groove Ball Bearings

Roller Bearing Type
Cylindrical Roller Bearings

Bushes Type
Linear Bushings

Structure
Linear Motor Actuator

Seals Type
Contact Seals

Number Of Rows
Single or Double Rows

Bore Size
16 mm - 50 mm (depending on model)

Outside Diameter
26 mm - 80 mm

Limiting Speed
Up to 5 m/s

Load Capacity
Up to 7400 N

Inner Diameter
16 mm - 50 mm

Application
Automation, Robotic Systems, CNC Machinery, Medical Devices

Controller Compatibility
HIWIN DMC Series and compatible drives

Operating Voltage
24 VDC/48 VDC/230 VAC

Stroke Range
Up to 1,500 mm

Peak Force
195 N to 10500 N

Rated Force
65 N to 3500 N

Ambient Temperature
0C to 40C

Repeatability
1 micron

Max Acceleration
Up to 10 G

Protection Class
IP54

Mounting Type
Base and Side Mounting

HIWIN Linear Motors Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
1000 Pieces Per Month

Delivery Time
1 Days

HIWIN Linear Motors About

HIWIN LINEAR MOTORS FROM

HIWIN MIKRO SYSTEM

Ironcore Motors

     3-phase Y-connected AC wiring
     Concentrated winding and high packing factor
     Wear-free operation and zero backlash
     Low cogging force
     High force density
     Excellent acceleration and deceleration
     Point-to-point positioning with high speed

Ironless Motors

3-phase Y-connected AC wiring
U Shape Stator
Distributed Winding
Wear-free operation and zero backlash
No cogging
No attraction force between forcer and stator
Low velocity ripple
Excellent acceleration and deceleration
In-line coupled forcer units
Smooth motion profile application

Shaft Motors

3-phase Y-connected AC wiring
Circle stator
Concentrated Winding
Wear-free operation and zero backlash
No cogging
No attraction force between forcer and stator
Low velocity ripple
Excellent acceleration and deceleration
In-line coupled forcer units
Smooth motion profile application

Planar Motors

Magnetoresistive stepping motor
Using air bearing for wear-free operation
Built-in position feedback system
Scarcely heat generation
Without magnetic field dissipation
Available for inverse installation
Multiple forcers operated individually

Unmatched Precision and Power

Designed for applications demanding outstanding accuracy and strength, HIWIN Linear Motors achieve repeated positioning within 1 micron. With rated force options from 65 N up to 3,500 N and peak force capacities stretching to 10,500 N, these motors are ideal for advanced automation, robotic systems, and precision CNC machinery across various industries.

Flexible and Robust Configuration

These actuators offer strokes up to 1,500 mm, accommodate bore sizes from 16 mm to 50 mm, and feature dual mounting optionsbase and side. Constructed from high-grade steel with deep groove ball or cylindrical roller bearings, they deliver superior load handling, robustness, and extended operational lifespans, even at speeds up to 5 m/s.

Reliable Operation and Control

HIWIN Linear Motors function flawlessly within ambient temperatures of 0C to 40C and are safeguarded by IP54 protection. Compatible with HIWIN DMC Series controllers and similar drives, they are easy to integrate into existing systems and are suitable for both new installations and retrofits.

FAQs of HIWIN Linear Motors:

Q: How do HIWIN Linear Motors ensure high positioning accuracy in automation applications?

A: HIWIN Linear Motors deliver exceptional repeatability of 1 micron, achieved through advanced actuator design, rigid construction using high-grade steel, and precision ball bearings or linear bushings. This ensures reliable, precise movements required in industries where accuracy is critical, such as robotics and CNC machinery.

Q: What is the installation process for these linear motors, and where can they be mounted?

A: Installation is straightforward, with options for both base and side mounting to suit diverse layouts. Each motor is accompanied by clear mounting guidelines, and their robust structure enables secure fitting on varied machinery or automation lines, making them suitable for new setups or integrations into existing equipment.

Q: When should I consider using HIWIN Linear Motors in my system?

A: Consider these motors when applications require high force (up to 10,500 N peak), fast acceleration (up to 10 G), extensive strokes (up to 1,500 mm), and sub-micron repeatability. They excel in automation, robotics, CNC, and medical device applications where precision and performance are paramount.

Q: Where can I purchase HIWIN Linear Motors in India, and who supports distribution?

A: HIWIN Linear Motors are available through authorized distributors, importers, and suppliers across India. Local technical support and reliable after-sales services are typically provided by these partners to ensure smooth integration and operation.

Q: What are the main benefits of using HIWIN Linear Motors in industrial applications?

A: Users benefit from high positioning accuracy, robust load capacities up to 7,400 N, versatile mounting options, rapid response times, and reliable operation, even in challenging environments. The motors compatibility with a range of controllers further enhances their adaptability and integration ease.

Q: How does controller compatibility enhance the performance of these linear motors?

A: These motors are designed to work seamlessly with HIWIN DMC Series controllers and other compatible drives, allowing for precise control, monitoring, and adjustment of motion parameters, thereby optimizing performance and ensuring smooth, coordinated machine operation.
